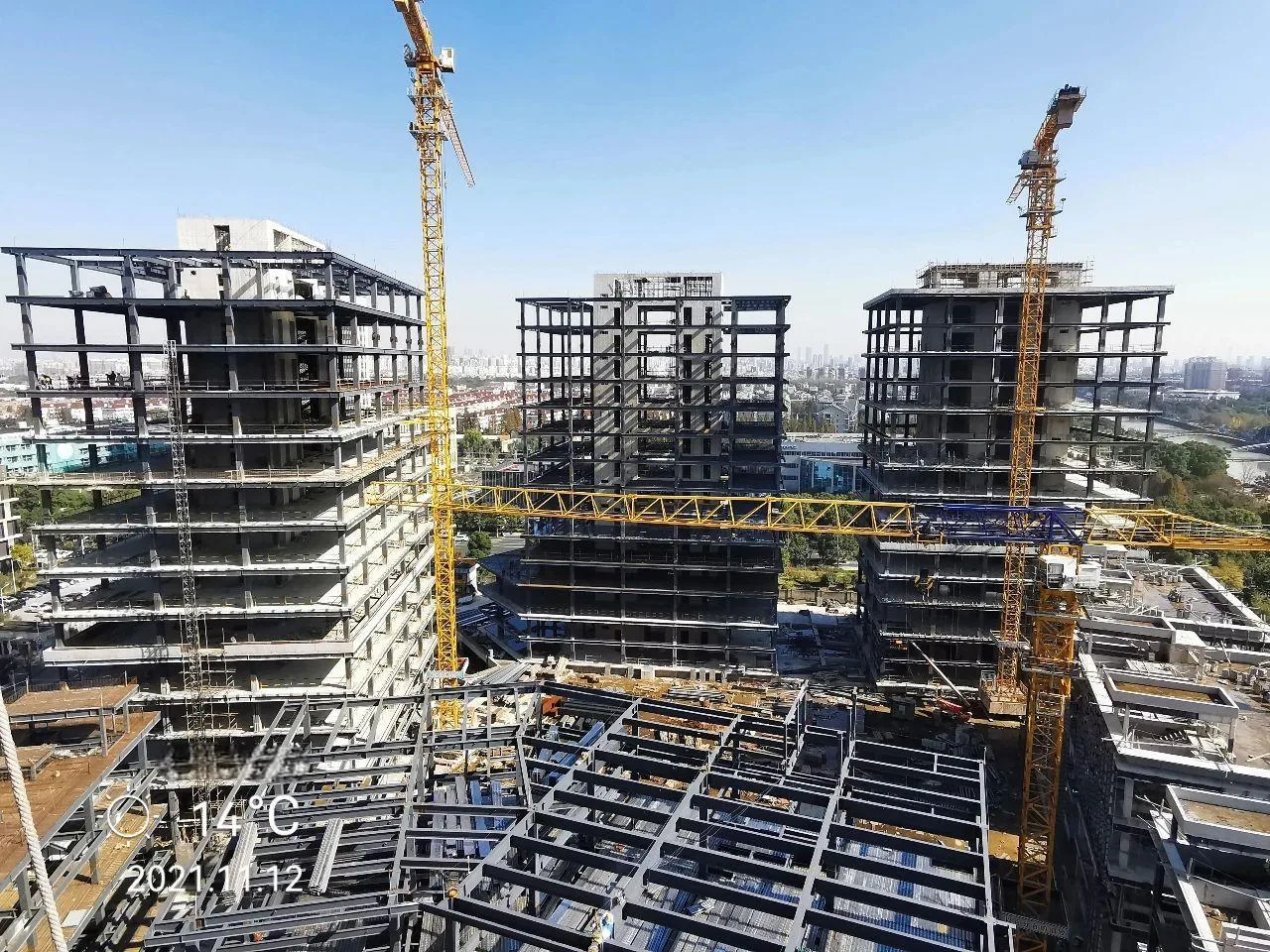

Elevating Modern Urban Architecture
Our multi-story steel structures offer unmatched versatility and structural integrity. They are the preferred choice for modern urban developments, perfectly suited for commercial offices, residential apartments, shopping malls, schools, and hospitals.
Compared to traditional concrete structures, our multi-story steel framework significantly reduces foundation weight, minimizes on-site wet work, and accelerates your project's ROI (Return on Investment) through radically shortened construction timelines.
- High-Rise Offices & Hotels
- Multi-Level Shopping Malls
- Educational Institutions
- Residential Apartments
Why Choose Steel for Multi-Story Buildings?
Excellent Seismic Resistance
Steel's natural ductility effectively absorbs and dissipates seismic energy. Our buildings are engineered to withstand severe earthquakes (Grade 8-9), ensuring unparalleled safety for occupants.
Superior Load-Bearing
Utilizing heavy-duty box columns and composite steel floor decks, the structure provides exceptional load-bearing capacity, effortlessly supporting heavy commercial equipment and dense foot traffic.
High Clear Height
Steel beams have a smaller cross-section compared to bulky concrete beams. This maximizes the floor-to-floor clear height, creating bright, spacious interiors perfect for premium offices and malls.
Large Column Span
Achieve incredibly flexible interior layouts with minimal obtrusive columns. Large spans allow architects absolute freedom to design open-plan offices, atriums, or flexible residential units.

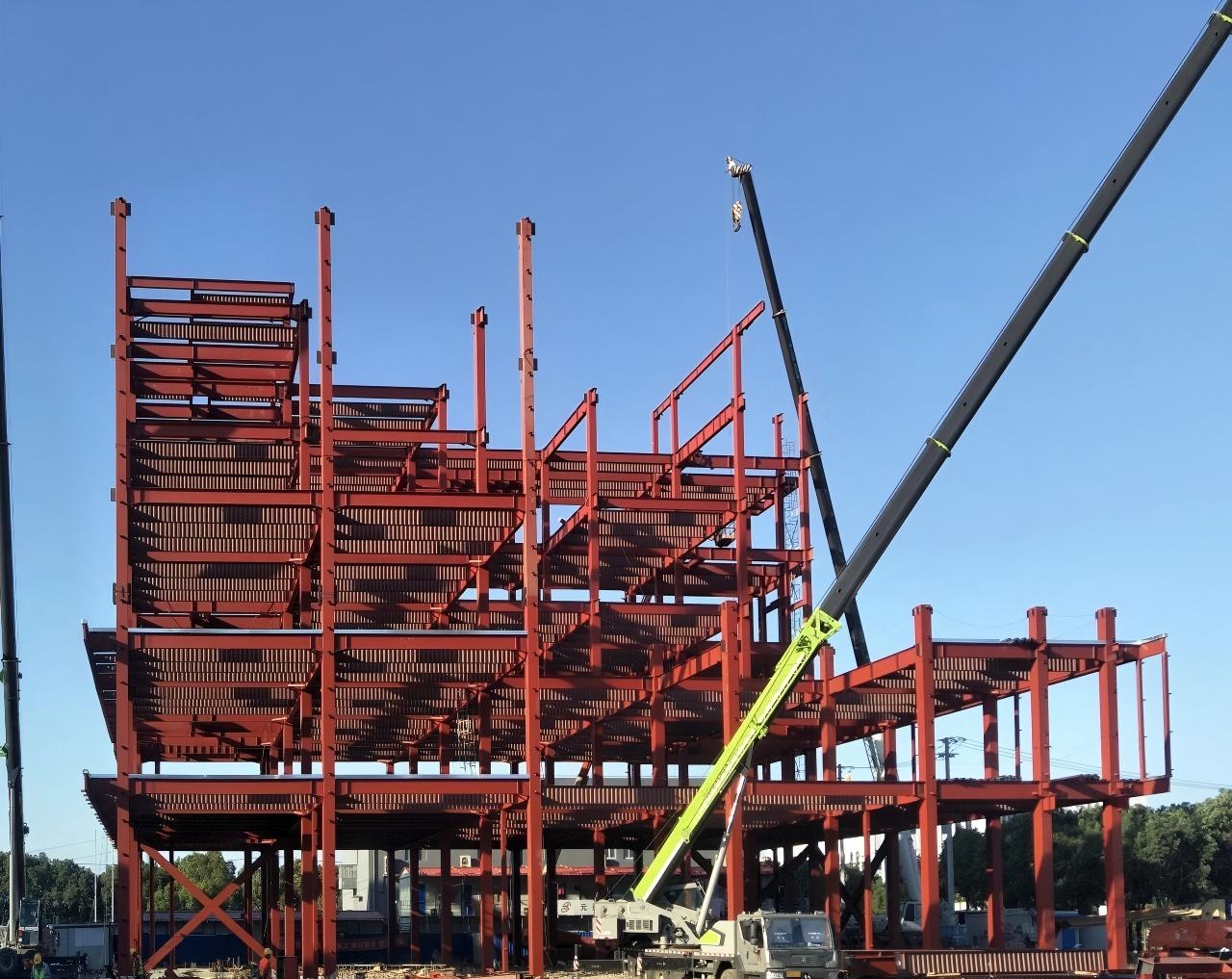

Precision Engineering in Progress
The adjacent construction site highlights our capacity to manage complex, multi-level structural steel frameworks. Utilizing high-precision fabricated components, we ensure that every column and beam aligns perfectly to support intense vertical and lateral loads.
By deploying our pre-engineered system, on-site teams can rapidly erect the primary structure, drastically reducing the overall construction cycle. This "dry construction" method minimizes environmental impact and provides a safer working environment compared to traditional reinforced concrete.
Multi-Story System Specifications
Our multi-story frameworks are engineered with specialized composite components to meet the strict structural, fireproofing, and acoustic standards of commercial and residential buildings.
| Main Column System | Concrete-Filled Steel Tubular (CFST) Columns, Heavy Box Columns, or Built-up H-Columns. |
|---|---|
| Floor System | Composite Steel Floor Decking (Galvanized profile + poured concrete) or Steel Truss Decks for high load-bearing and sound insulation. |
| Beam & Span | Welded H-beams / Cellular beams. Flexible column spacing from 8m to 15m+ based on architectural layout. |
| Connection Method | Rigid column-beam connections using 10.9-grade high-strength friction-grip bolts and full-penetration site welding. |
| Wall / Cladding Compatibility | Fully compatible with Glass Curtain Walls, ALC (Autoclaved Lightweight Concrete) Panels, AAC panels, or modern architectural facades. |
| Fire Protection | Treated with high-performance Intumescent Fireproof Coating (Up to 3-hour fire rating) as per international safety codes. |
| Seismic & Wind Rating | Engineered to resist Grade 8-9 Earthquakes and severe typhoon wind loads (Calculated per specific site location). |
| Staircases & Elevator Shafts | Pre-fabricated steel staircases and reinforced structural steel cores for elevator shafts. |
Advanced Manufacturing & Customization

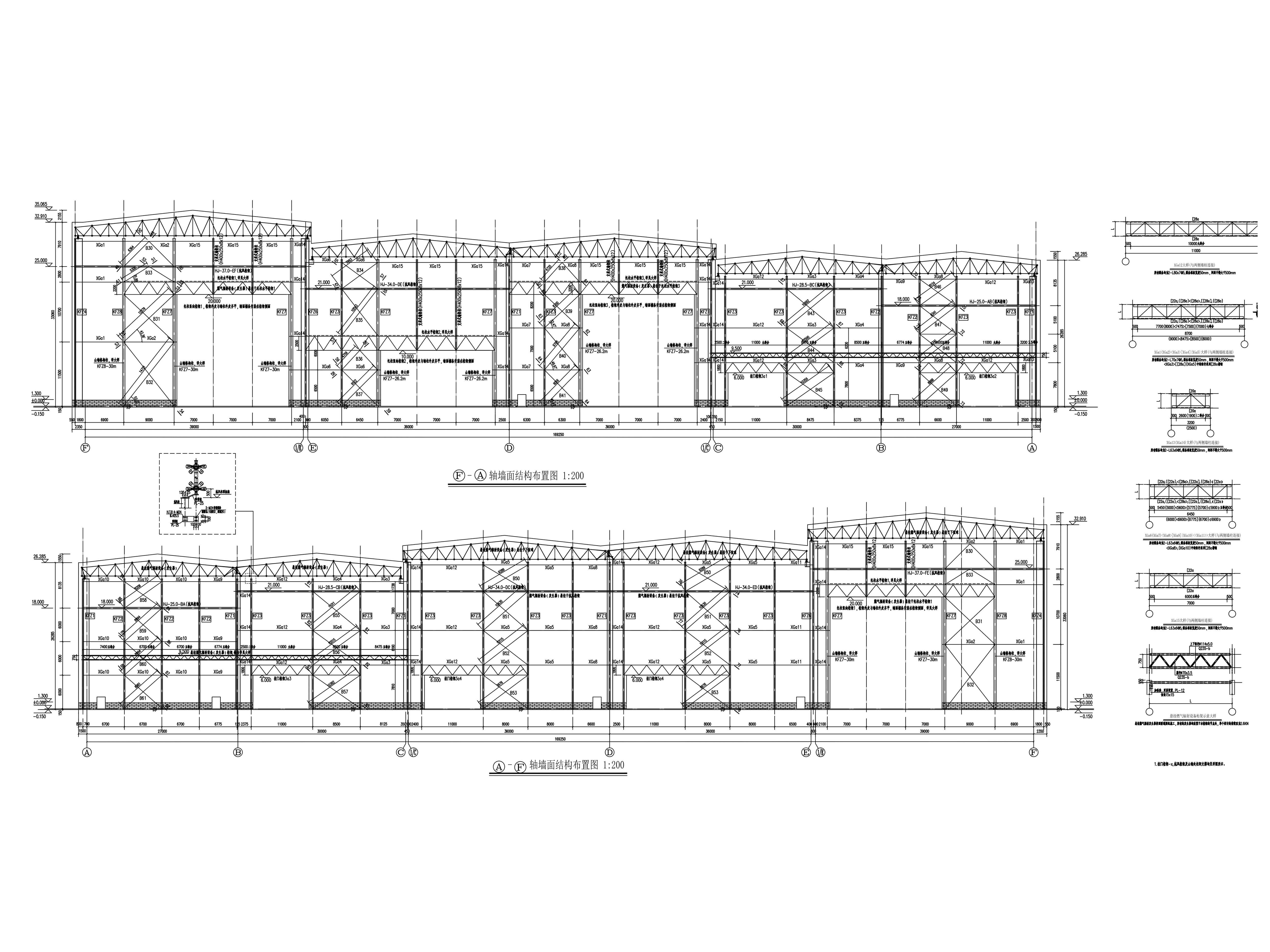

Every high-rise project is unique. Our Grade-A design institute leverages advanced software (Tekla Structures, PKPM) to provide complete customization based on your specific architectural aesthetics, floor load requirements, and local building codes.
Precision Laser Cutting & Punching
We utilize industrial-grade CNC laser machines to ensure every thick steel plate and connection hole is millimeter-accurate, guaranteeing seamless on-site heavy assembly.
Hybrid Intelligent Welding
Combining the flexibility of expert manual positioning with the flawless consistency of automated submerged arc welding machines for ultimate structural integrity under dynamic loads.
Sa 2.5 Shot Blasting & Fireproof Coating
All steel components undergo rigorous Sa 2.5 shot blasting to remove scale, followed by anti-rust primers and specialized fire-retardant coatings essential for multi-story safety.
Comprehensive 30-Step Quality Control
Zero compromises on safety. Before shipping, your multi-story structural components must pass our strict factory inspection protocol compliant with GB 50205-2020 and AWS D1.1 structural welding standards.
| Category | No. | Inspection Item | Acceptance Criteria & Tolerance | Method / Tools |
|---|---|---|---|---|
| I. Raw Material Incoming | 1 | Material Certification | Original Material Test Certificates (MTC) required; Grade, Size, and Heat No. must match the physical material. | Document Review |
| 2 | Stamps & Markings | Steel surface must have clear manufacturer stamps or batch IDs. Tracking numbers must be legible. | Visual Check | |
| II. Thickness Acceptance | 3 | Under-Tolerance Control | Under-tolerance must be within limits. For Export: Recommended actual thickness ≥ Nominal -0.3mm. | Micrometer / UT Gauge |
| 4 | Surface Defects | No bubbles, scabs, cracks, inclusions, or pressed-in iron oxide scale allowed. | Visual Check | |
| III. Cutting & Nesting | 5 | Part Dimensions | Length & Width tolerance: ±2.0 mm. | Steel Tape |
| 6 | Cut Perpendicularity | ≤ 10% of thickness, and max ≤ 2.0 mm. | Square / Feeler Gauge | |
| 7 | Cut Surface Roughness | Machine Cut ≤ 0.2 mm; Manual Cut ≤ 0.3 mm. | Roughness Template | |
| 8 | Notches / Edge Defects | Depth ≤ 1.0 mm; deeper defects must be ground smooth or repaired. No sharp notches allowed. | Depth Gauge | |
| IV. Assembly / Fitting | 9 | Jig & Leveling | Platform flatness deviation ≤ 3.0 mm; tack welds must be sound and free of cracks. | Level / Visual |
| 10 | Section Size (H/B) | Height & Width tolerance: ±2.0 mm. | Steel Tape | |
| 11 | Web Center Offset | Web center to Flange center offset ≤ 2.0 mm. | Steel Ruler | |
| 12 | Flange Squareness | Deviation b/100 and ≤ 2.0 mm. | Square / Feeler Gauge | |
| 13 | Overall Length | Total component length tolerance: ±3.0 mm. | Steel Tape / Laser | |
| 14 | Assembly Gap | Joint gap: 1.0 ~ 3.0 mm (depending on WPS). | Feeler Gauge | |
| V. Welding Execution | 15 | Pre-weld Cleaning | No rust, oil, or moisture within 20mm of the groove/edge. | Visual Check |
| 16 | Weld Appearance | No cracks, weld bumps, burn-through, or craters; Reinforcement: 0 ~ 3 mm. | Weld Gauge | |
| 17 | Weld Leg Size | Meet design requirements; Tolerance: 0 ~ +3.0 mm. | Weld Gauge | |
| 18 | Internal Defects | No surface porosity/slag in Class I/II welds; Undercut depth ≤ 0.5 mm for Class II. | Magnifier / Visual | |
| 19 | NDT (UT/RT) | Class I: 100% UT/RT; Class II: 20% random; results must meet project specs. | NDT Report | |
| VI. Shot Blasting | 20 | Blast Grade | Must reach Sa 2.5 Grade (Near-white metal, no visible scale/rust). | Visual Comparison |
| 21 | Surface Roughness | Maintain 40 ~ 75 μm (or per paint datasheet). | Roughness Gauge | |
| 22 | Cleanliness | Surface must be blown clean; no dust, oil, or residual steel grit. | White Cloth Test | |
| VII. Coating & Painting | 23 | Dry Film Thickness | 80-20 Rule: 80% points meet spec; 20% points not less than 80% of spec. | DFT Meter |
| 24 | Coating Integrity | No damage, no missed spots, no sags, and strictly NO RUST SPOTS. | Visual (100%) | |
| 25 | Adhesion | Cross-cut test must achieve Grade 0 ~ 1. | Cross-cut Kit | |
| VIII. Final Audit & Loading | 26 | Global Geometry | Camber L/2000 ≤ 10mm; Twist h/250 ≤ 5mm. | Plumb Line / Tape |
| 27 | Pallet/Crate Quality | Pallets must be robust; load-bearing capacity must prevent deformation. | Load Inspection | |
| 28 | Container Fit | Overall package width fits container interior (usually ≤ 2.28m). | Steel Tape | |
| 29 | Categorized Stacking | Sorted stacking; use timber or rubber pads between items to prevent paint damage. | Visual Check | |
| 30 | Bracing & Lashing | Items secured to pallets, and pallets secured to container via steel straps. | Tightness Check |

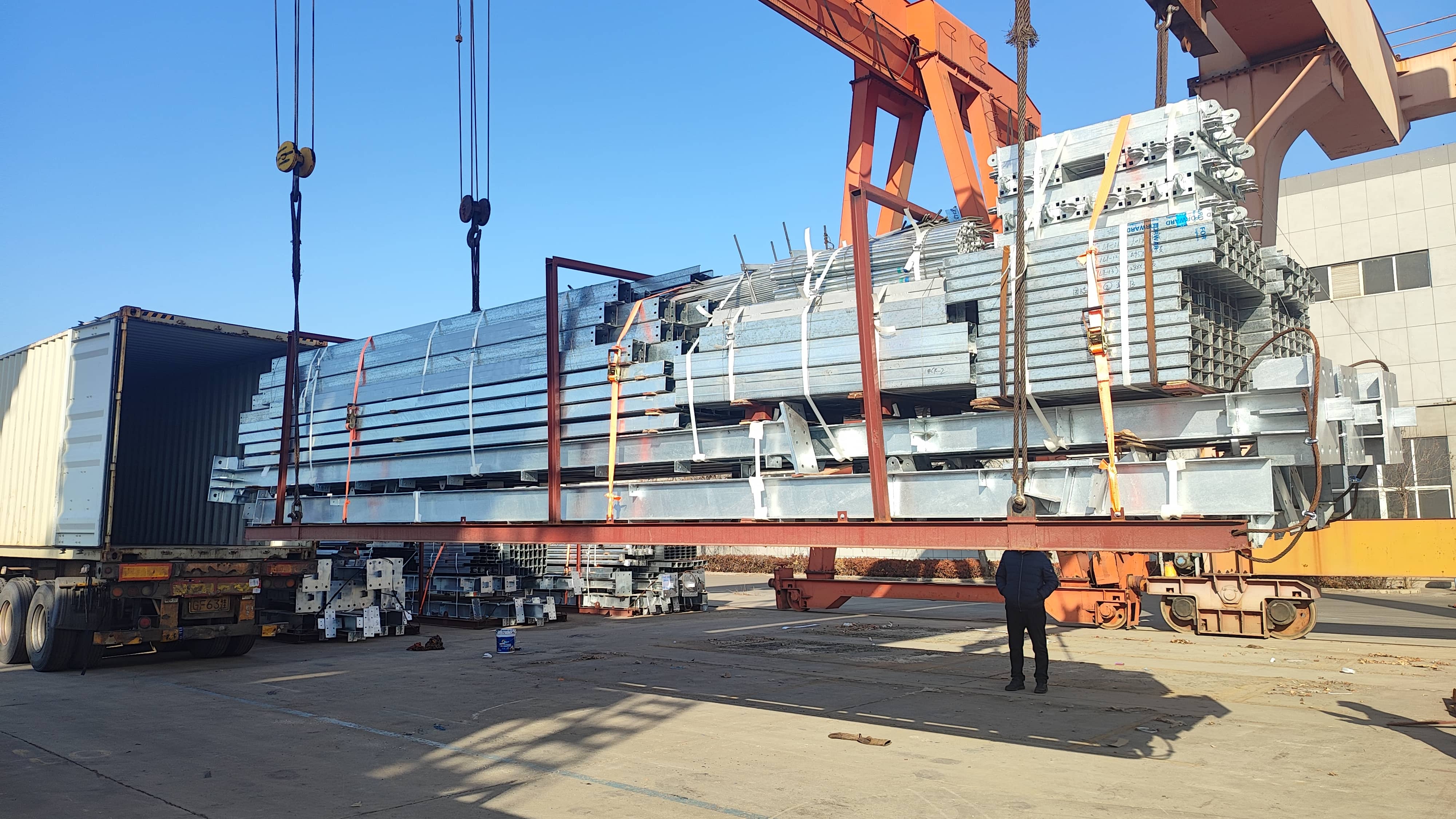

Steel Bracket Packaging System
To guarantee that your multi-story framework components and delicate floor decking arrive in pristine condition, we abandon traditional loose loading. Instead, we utilize a proprietary Steel Bracket Unitized Packaging System.
Massive columns, floor beams, and cross-bracing components are meticulously categorized, padded with protective rubber, and strapped onto heavy-duty steel skids. This not only prevents paint friction and collision damage during ocean transit but also allows for rapid, one-lift crane unloading at your high-rise construction site.
- Zero Paint Damage Guarantee
- Maximized Container Space Utilization
- Fast & Easy On-Site Unloading
Related Multi-Story Projects
Explore how our multi-story steel structures are shaping city skylines, commercial districts, and premium residential areas.
Frequently Asked Questions
Key structural framing, engineering standards, and cost considerations for prefabricated multi-story steel building projects.
1. What structural framing systems are available for multi-story prefabricated steel buildings?
Multi-story steel structures utilize three primary structural framing systems depending on building height, architectural floor plan, and seismic requirements:
- Braced Frame Systems (CBF / EBF): Concentrically or eccentrically braced frames utilize vertical diagonal bracing (X-bracing, chevron, or V-bracing) to absorb lateral wind and earthquake loads. This is the most economical solution for 2- to 8-story commercial offices and hotels.
- Moment-Resisting Frames (MRF): Rigid beam-to-column connections transfer bending moments without requiring diagonal braces, maximizing open floor plans, flexible window placements, and clear interior partitioning.
- Composite Steel-Concrete Systems: Welded H-beams, built-up box columns, or Concrete-Filled Steel Tubes (CFT) paired with composite metal decking to achieve high load capacity and structural damping.
At XinQiao Steel (prefabsteelstruct.com), our engineering team utilizes Tekla Structures 3D detailing to calculate exact joint stiffness, prevent connection clashes, and optimize steel tonnage per square meter.
2. What is the average fabrication and FOB cost per square meter for a multi-story steel building?
Factory-direct supply costs for multi-story prefabricated steel frames typically range from $75 to $160 USD per square meter ($7.00 to $14.80 USD per square foot), categorized by story count, floor loads, and architectural complexity:
- Low-Rise Commercial / Office (2 – 4 Stories): $75 – $105 / m² — Welded H-columns, secondary floor beams, corrugated galvanized floor deck.
- Mid-Rise Mixed-Use / Residential (5 – 8 Stories): $105 – $135 / m² — Built-up box columns, heavy rigid moment frames, composite floor decking.
- Heavy Commercial / High-Seismic (6 – 12+ Stories): $130 – $160+ / m² — Heavy H/Box frames, CFT columns, customized lateral bracing, high-wind engineering.
Note: Actual structural steel prices fluctuate with global steel plate indices and seismic zone specifications. Contact XinQiao Steel for a tailored Bill of Quantities (BOQ).
3. Which floor slab systems are compatible with XinQiao Steel multi-story frames?
Multi-story frames can be integrated with several engineered floor systems:
- Composite Steel Decking with In-Situ Concrete: Galvanized profiled steel decking (0.8mm–1.2mm) acts as permanent formwork and tensile reinforcement, tied to primary beams via pre-welded Nelson shear studs.
- Precast Concrete Hollow-Core Slabs: Precast planks hoisted directly onto steel floor girders, drastically reducing wet concrete works on-site.
- Autoclaved Lightweight Concrete (ALC / AAC) Panels: High thermal insulation and acoustic ratings with lightweight dead load, ideal for steel-frame apartment blocks and school dormitories.
4. How do multi-story steel buildings achieve 1- to 3-hour fire endurance ratings?
Structural steel maintains its load-bearing capacity under fire through certified passive fireproofing systems:
- Thin-Film Intumescent Fireproof Coatings: Decorative coatings that expand into an insulating carbon foam under heat, providing 60 to 120 minutes of fire resistance while leaving structural steel exposed for architectural aesthetics.
- Spray-Applied Fire-Resistive Materials (SFRM): Cementitious or mineral-fiber sprays applied to hidden floor beams and columns for cost-effective 2- to 3-hour fire separation.
- Fire-Rated Board Encasement: Double-layer Type X gypsum plasterboard or calcium silicate board enclosures meeting UL 263, ASTM E119, and BS 476 fire safety codes.
5. What are the main engineering advantages of a steel frame over conventional reinforced concrete (RC)?
Switching from concrete masonry to a pre-engineered multi-story steel frame yields quantifiable construction benefits:
- 40%–50% Shorter Build Schedules: Prefabricated components are manufactured off-site concurrently with foundation excavation, followed by rapid crane hoisting and 100% bolted connections.
- 30%–40% Dead Weight Reduction: Lower structural weight reduces foundation depth, pile quantities, and substructure concrete costs, especially in soft soil zones.
- 5%–8% More Usable Floor Area: Slender steel columns and wide beam spans eliminate bulky concrete pillars, maximizing net leasable floor space.
- Superior Ductility: Steel bends and absorbs dynamic energy during seismic events rather than cracking abruptly, meeting strict international seismic building codes.
6. How does XinQiao Steel ensure multi-story buildings withstand high seismic forces and wind shear?
Our engineering department performs site-specific dynamic response analyses conforming to local codes:
- Code Compliance: Structural sizing designed under AISC 341 (Seismic Provisions for Structural Steel Buildings), ASCE 7 (Minimum Design Loads), and Eurocode 8 (Design of Structures for Earthquake Resistance).
- Drift & Deflection Control: Lateral drift ratios are constrained (typically H/400 to H/500) to protect curtain walls, interior drywall partitions, and MEP risers from inter-story shear damage.
- High-Ductility Material: Structural elements utilize high-strength Q355B / ASTM A572 Grade 50 steel with full-penetration groove welds subjected to 100% Ultrasonic Testing (UT).
7. What is the typical lead time from initial 3D design to site delivery?
A standard 3,000 to 15,000 m² multi-story steel project follows an accelerated workflow:
- 3D Engineering & Tekla Detailing: 7–14 days for structural calculation verification, joint detailing, and anchor bolt layout approval.
- Factory Fabrication: 25–40 days for automated CNC cutting, submerged arc welding, shot blasting to Sa 2.5, and zinc-rich priming.
- Seaworthy Packing & Logistics: Components are color-coded, bundled, and containerized with erection markings matching 3D installation blueprints to ensure zero on-site assembly confusion.
