Industrial Workshop Cladding: Single-Skin vs PU/PIR vs Rockwool

2. Core Material Anatomy: Metallurgy, Rigid Foams, and Mineral Stone Wool

Selecting envelope specifications requires analyzing base metallurgical properties and core physical chemistry. Structural engineers must weigh material formulations against field exposure conditions, mechanical shear transfer, and thermal requirements.

Steel Sheet Substrates and Metallurgy

Single-skin profiles and sandwich panel facings rely on cold-rolled structural steel substrates conforming to EN 10346 or ASTM A792/A653. Structural calculations for wind uplift and diaphragm action require steel grades ranging from S280GD up to S350GD (minimum yield strength f_y of 280 to 350 MPa) with nominal base metal thicknesses (BMT) of 0.50 mm to 0.70 mm.

Metallic coatings dictate service life in severe interior or coastal exposures. Galvalume (AZ150: 55% Al, 43.4% Zn, 1.6% Si) provides 2 to 4 times the corrosion resistance of standard hot-dip galvanized steel (Z275) in aggressive industrial atmospheric microenvironments. The aluminum component forms a microscopic inert aluminum oxide barrier, while the zinc phase provides galvanic sacrificial protection at cut edges and screw penetrations. Factory pre-painted finishes apply a 5-micron corrosion-inhibiting epoxy primer followed by either a 20-micron regular modified polyester (PE) topcoat or a 25-micron polyvinylidene fluoride (PVDF / Kynar 500, minimum 70% fluoropolymer resin) system for maximum UV chalking and color fade resistance under ISO 12944 atmospheric corrosivity category C3 to C5 zones.

Rigid Foam Cores: PUR versus PIR

The legacy formulation, Polyurethane (PUR), relies on an equimolar stoichiometric reaction between polymeric methylene diphenyl diisocyanate (pMDI) and polyol blends, yielding an isocyanate index between 100 and 115. These standard urethane linkages thermally decompose at temperatures near 200°C, yielding high smoke volumes and rapid core consumption under localized flame exposure.

In contrast, a PIR polymer formulation with an isocyanate index above 250 creates thermally stable isocyanurate ring structures that char rather than melt under high heat. Catalytic trimerization links three isocyanate groups into a six-membered, cross-linked isocyanurate ring. When subjected to flame, this network undergoes surface carbonization, forming a stable cohesive char layer that restricts oxygen ingress and preserves structural core insulation. Closed-cell content exceeds 95%, yielding a thermal conductivity (λ) between 0.020 and 0.022 W/m·K while meeting Euroclass B-s1, d0 flame propagation criteria per EN 13501-1.

Structural Rockwool Cores and Interlock Mechanics

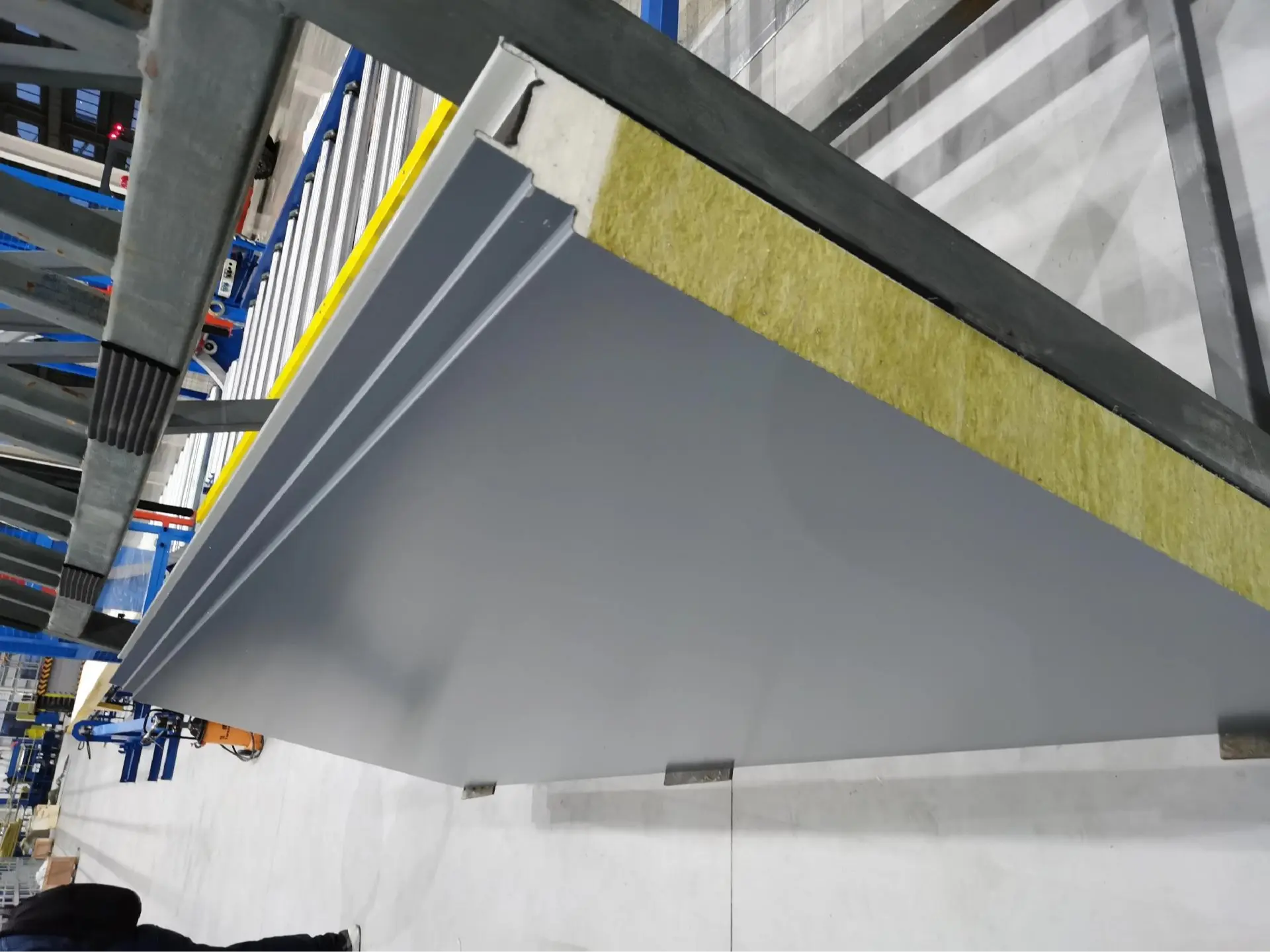

Structural mineral wool panels rely on natural basalt stone melted at 1,450°C, spun into high-tensile filaments, and bound using thermosetting phenolic resins to establish an overall core density of 100 to 120 kg/m³. Raw non-woven mineral wool mats possess low transverse shear capacity. To solve this, EN 14509 requires mineral wool cores in sandwich panels to be fabricated from oriented lamellas with alternating grain alignment to resist transverse shear stresses.

The manufacturing line segments continuous mineral fiber boards into strips, rotates them 90 degrees, and spaces them under compressive pressure so the fibers align perpendicular to the metal facings. This mechanical orientation guarantees a panel shear modulus (G_c) equal to or exceeding 3.0 MPa, allowing panels to absorb wind suction loads over purlin spans up to 4.0 meters. High-end exterior wall applications demand concealed fastener interlocks with secondary rain-screen mechanics and factory-applied closed-cell continuous butyl gaskets to maintain vapor-tight building envelopes.

3. Thermal Transmittance (U-Values) and ISO 13788 Condensation Control

Thermal efficiency and hygrothermal design govern the operational lifecycle costs of modern industrial facilities. Within industrial envelopes, the primary engineering objective is balancing overall thermal transmittance (U-value) against interstitial condensation risks, building structural dead loads, and secondary steel requirements.

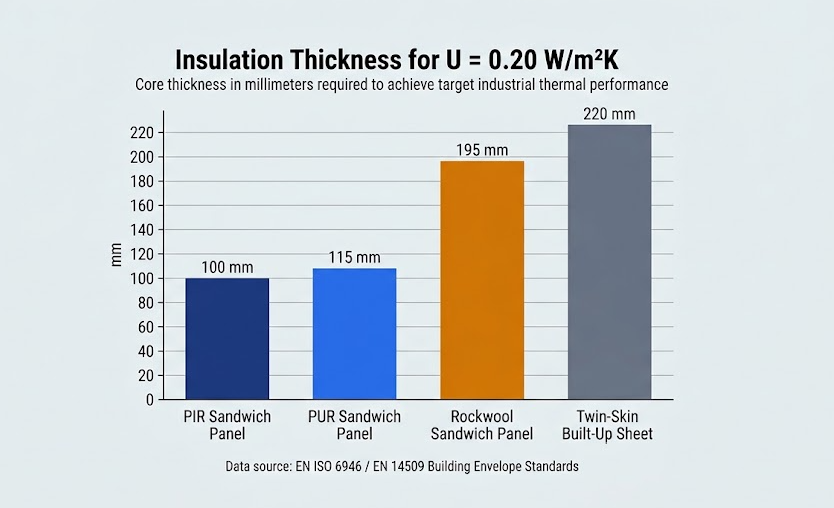

Thermal conduction through an exterior envelope depends directly on the core material thermal conductivity (λ). Bare structural steel exhibits high conductivity at roughly 50 W/mK, offering zero effective thermal resistance. In contrast, rigid polyurethane (PUR) achieves 0.023 to 0.025 W/mK, polyisocyanurate (PIR) operates at 0.020 to 0.022 W/mK, and structural mineral rockwool typically ranges between 0.038 and 0.044 W/mK. Achieving a building envelope U-value of 0.20 W/m²K requires a 100 mm PIR panel compared to an equivalent 180 mm to 200 mm Rockwool panel thickness.

Beyond heat transfer, moisture control governs envelope durability. Glaser method dew-point calculations per ISO 13788 demonstrate that uninsulated single-skin roofs experience internal condensation dripping whenever indoor relative humidity exceeds 45% at external ambient temperatures below 5°C. In conventional twin-skin built-up systems, continuous Z-spacers and through-fasteners pierce the vapor control layer, generating up to 35% thermal degradation due to fastener thermal bridging (ψ-values of 0.02–0.05 W/mK). Factory-engineered sandwich panels eliminate these thermal short circuits via interlocking tongue-and-groove joinery and continuous factory-applied vapor gaskets.

4. Fire Safety Performance: Euroclass Ratings, FM Global Approvals, and Life Safety Mandates

Evaluating building envelope safety requires a clear division between reaction-to-fire performance and fire-resistance ratings. Reaction to fire (EN 13501-1, ASTM E84) measures combustibility, flame propagation rate, smoke volume, and burning droplets. Fire resistance (EN 13501-2, ASTM E119, UL 263) measures an assembled wall system's capacity to maintain loadbearing capacity (R), integrity (E), and thermal insulation (I) under furnace exposure.

Mineral Rockwool: High-Hazard Boundaries and Fire Compartmentation

Rockwool core panels contain dense, spun basalt stone fibers bonded with thermosetting resin at densities ranging from 100 kg/m³ to 140 kg/m³. Because stone does not burn, Rockwool achieves the highest Euroclass reaction-to-fire ratings: A1 (completely non-combustible) or A2-s1,d0 with steel skins.

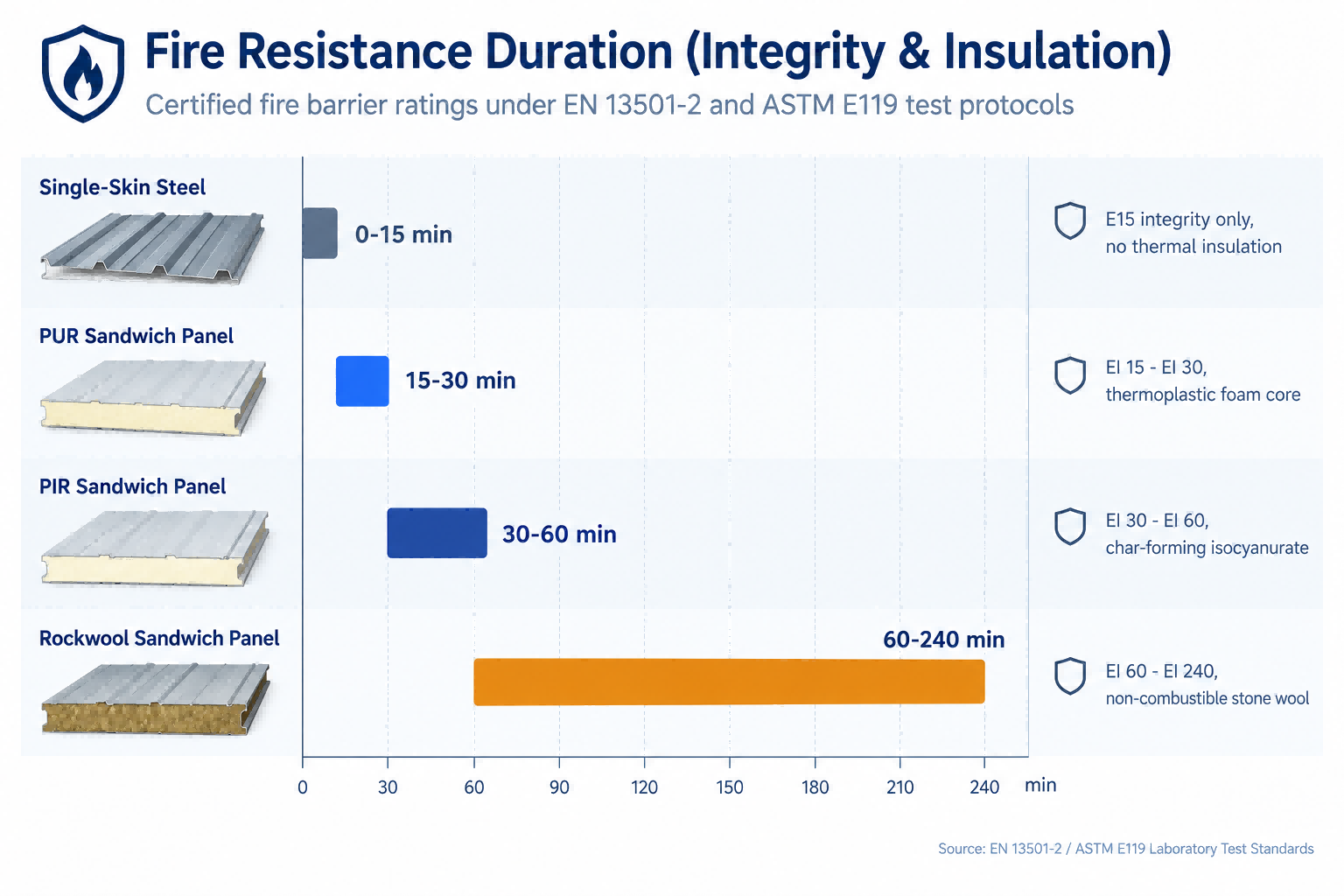

Rockwool sandwich panels achieve certified fire resistance of EI 120 to EI 240 per EN 13501-2, maintaining structural integrity and thermal barrier performance for up to 4 hours. This makes Rockwool panels indispensable for exterior wall assemblies facing zero-lot-line boundary property requirements, interior fire division walls, and severe hazard zones such as transformer bays, industrial paint booths, chemical compounding plants, and lithium-ion battery assembly workshops.

Polyisocyanurate (PIR) vs. Polyurethane (PUR): Core Chemistry and Underwriting Risks

The structural steel industry has largely phased out traditional polyurethane (PUR) in favor of advanced polyisocyanurate (PIR) formulations. Modern PIR panels formulated to FM 4880 Class 1 standards achieve Euroclass B-s1,d0 under EN 13501-1, exhibiting self-extinguishing surface charring without toxic flaming droplets (d0).

Conversely, legacy Polyurethane (PUR) cores carry substantial industrial property insurance surcharges due to heavy smoke production classifications (s3) and combustible thermoplastic runoff during flashover. PUR undergoes polymer chain scission at temperatures between 250°C and 300°C, generating dense black smoke while liquefying into flaming drops that ignite secondary floor fires.

5. Structural Spanning, Deflection Limits, and Secondary Steel Dead Load Penalties

Under EN 14509, sandwich panels behave as composite beams where exterior and interior steel facings function as continuous tension and compression flanges, while the rigid core transfers transverse shear stresses. Non-composite single-skin profiled sheets lack an internal shear transfer mechanism; their capacity depends purely on profile geometry, effective width under local buckling, and steel yield strength (ASTM A653 Gr50 or Q355B).

Composite structural action allows a 100 mm PIR panel to span up to 3.5 m between secondary purlins under standard wind suction loads, compared to a maximum of 1.5 m to 1.8 m for 0.5 mm single-skin trapezoidal profiles.

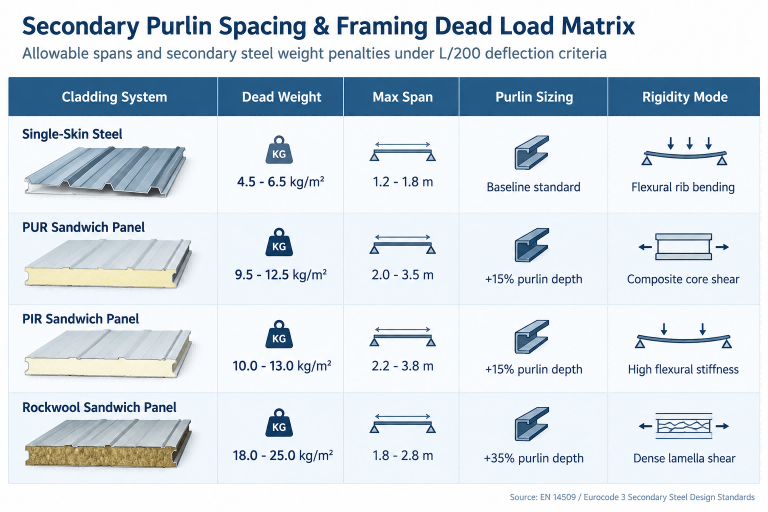

Specifying 150 mm Rockwool cladding (22–25 kg/m²) increases cumulative dead load on secondary steel by more than 100% over PIR (11 kg/m²), directly driving a 15–20% increase in secondary steel tonnage. While single-skin and PIR panels allow purlins spaced up to 3.0–3.5 m on center, heavy Rockwool cladding forces deep Z250 or Z300 sections, or contracts purlin bays down to 1.8 m to satisfy L/200 gravity deflection limits. Furthermore, thermal bow phenomena under solar irradiation (ΔT up to 50°C on dark coatings like RAL 7016) mandate slotted fastener holes and controlled torque tightening.

6. Acoustic Attenuation and Industrial Rain Noise Drumming Mitigation

In high-output manufacturing facilities, specifying the proper wall and roof assembly dictates whether an operating facility satisfies OSHA 29 CFR 1910.95 permissible noise exposure limits (85 dBA 8-hour Time-Weighted Average). Uninsulated single-skin metal roofs produce indoor rainfall impact noise levels exceeding 75 dBA during downpours, turning lightweight sheeting into a sounding board.

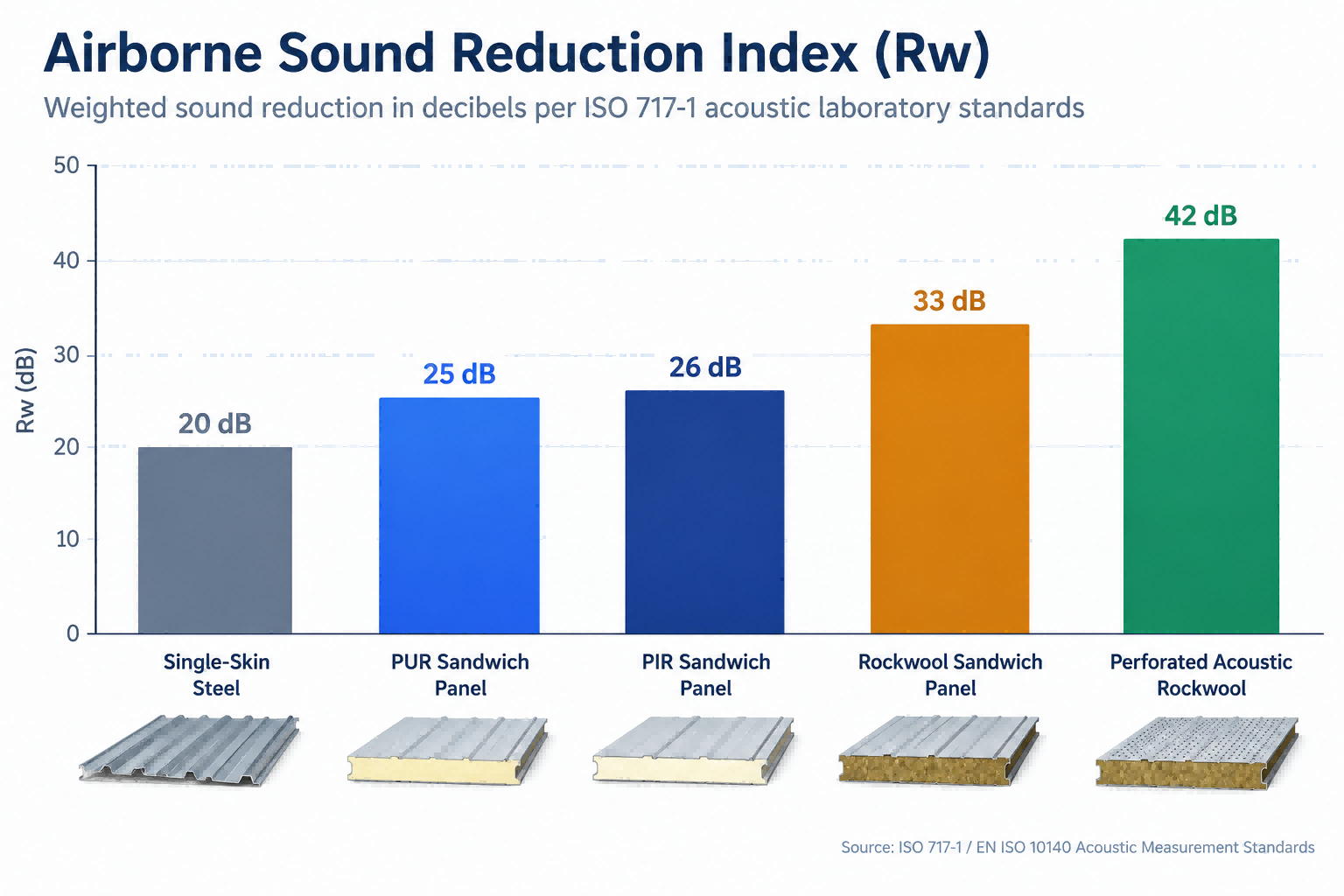

High-density stone wool composite panels achieve sound reduction indices of R_w 31 to 35 dB without perforations, providing a 10–15 dB improvement over single-skin and rigid PIR panels. For internal reverberation control in high-noise plants, acoustically perforated Rockwool panels with internal vapor-permeable tissue barriers provide sound absorption coefficients (NRC) up to 0.85, dropping total factory reverberation time (RT₆₀) from above 3.5 seconds down to under 1.2 seconds.

7. Installed CapEx, Erection Velocity, and 20-Year Lifecycle Cost Analysis

Evaluating industrial building envelopes requires balancing factory purchase orders against real-world installation schedules and multi-decade operational outlays. Baseline material cost indexes (where 0.5 mm single-skin = 1.0) sit at 1.35–1.45 for PUR, 1.50–1.65 for PIR, and 1.70–1.95 for Rockwool.

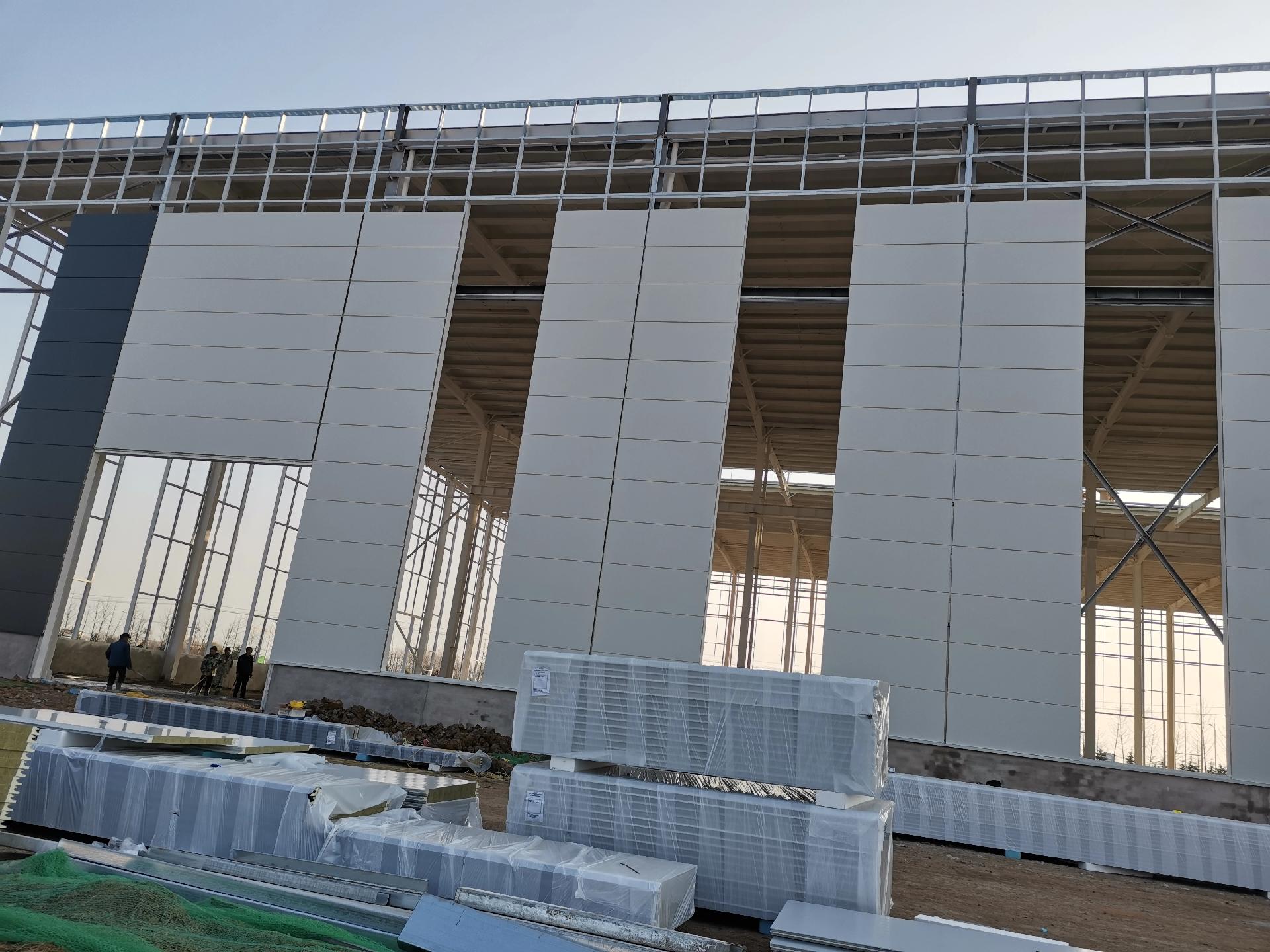

Single-pass composite panel erection achieves cladding speeds of 400–600 m² per crane shift with a 4-man crew, cutting site labor hours by 35% compared to built-up twin-skin systems.

20-Year Lifecycle Cost Model (5,000 m² Climate-Controlled Facility)

Consider a 5,000 m² manufacturing plant located in a temperate continental climate zone (design condition: winter low -10°C, summer peak +38°C, conditioned interior target 21°C). While uninsulated single-skin profiles offer the lowest initial material purchase price, retrofitting or running HVAC in an uninsulated warehouse results in operational energy penalties that eclipse the CapEx delta within 36 months.

Over a 20-year structural life, PIR sandwich panels generate a net expenditure reduction exceeding $355,000 compared to built-up twin-skin systems, and over $2,850,000 compared to uninsulated sheets. PIR recovers its higher initial CapEx over single-skin or poorly insulated systems within 3 to 5 years through reduced compressor run hours, lower chiller plant sizing, and minimal joint degradation across the building envelope.

8. Engineering Specification Guide: Facility Typologies and Decision Framework

Selecting an envelope system requires balancing structural steel frame weight, thermal requirements, fire boundaries, and erection speed. Each facility classification dictates mechanical load limits and hygrothermal performance thresholds that determine envelope selection:

Critical Detailing Traps and On-Site Mitigation

Defective junction detailing degrades envelope service life even when installing heavy-gauge insulated metal panels:

• 1. Fastener Metallurgy and Galvanic Isolation: Fastener selection in industrial atmospheres requires Grade 304 or 316 austenitic stainless steel bi-metal screws with 19 mm vulcanized EPDM washers to prevent galvanic corrosion and premature joint failure. Bi-metal screws feature a fusion-welded carbon steel drill tip to penetrate cold-formed structural flanges (up to 12 mm thickness) while retaining a corrosion-proof stainless shank exposed to the outer envelope.
• 2. Sealing Continuity at Eaves and Ridges: Discontinuous perimeter vapor seals allow warm interior air to migrate into structural cavity zones. Panel laps require factory-applied continuous butyl rubber sealant tape (minimum 8 mm cross-section per ASTM C920) combined with profiled closed-cell polyethylene filler blocks. Ridge details must incorporate an under-ridge breathable membrane paired with external cold-rolled ridge caps to maintain zero air permeability under a 50 Pa pressure differential.
• 3. Thermal Bridging at Foundation Interfaces: Anchor bolt layouts for portal frame column bases must be held to tight erection tolerances (±3 mm) per AISC Design Guide 1 Section 2.3. The concrete footing must incorporate an exterior perimeter rebated curb lined with high-density extruded polystyrene (XPS) insulation. Setting panel bottom base tracks directly onto bare grade beams creates a severe thermal short circuit. Structural frames must be mechanically isolated from interior moist zones using non-shrink cementitious grout beds (ASTM C1107) and sealed thermal-break separator strips beneath the cladding runner channels.
